The Keystone Hideout is what you need to do camping RIGHT! These units feature a combination of luxury amenities, quality features, and camping conveniences all at an affordable price point. There are several travel trailers, fifth wheels, and even destination trailers to choose from, and they come in a wide range of floor plan layouts and sizes to accommodate any family.

Each model includes a cambered chassis, hurricane straps reinforced structure, and an 8' exterior width, plus many more standard features you are sure to want to check out for yourself.

It's time to get the right features at the right price right now with one of these Keystone Hideout travel trailers or fifth wheels!

  • Hideout 192LHS

    Hideout 192LHS Floorplan Image

    Keystone RV Hideout travel trailer 192LHS highlights: Large Bathroom Murphy Bed ... more about Hideout 192LHS

    Featured 192LHS

    Specifications

    Sleeps 3
    Length 23 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 3 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 540 lbs
    Dry Weight 4421 lbs
    Cargo Weight 2579 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Neo-Angled

    Similar Floorplans

    Murphy Bed Rear Bath

  • Hideout 202LHS

    Hideout 202LHS Floorplan Image

    Keystone RV Hideout travel trailer 202LHS highlights: Queen-Size Bed Sleeps Five ... more about Hideout 202LHS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Length 24 ft 11 in
    Ext Width 8 ft
    Ext Height 10 ft 3 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 490 lbs
    Dry Weight 4438 lbs
    Cargo Weight 2762 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 39 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Front Bedroom

  • Hideout 212LHS

    Hideout 212LHS Floorplan Image

    Keystone RV Hideout travel trailer 212LHS highlights: Double-Size Bunks Rear ... more about Hideout 212LHS

    Featured 212LHS

    Specifications

    Sleeps 7
    Length 26 ft 4 in
    Ext Width 8 ft
    Ext Height 10 ft 3 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 545 lbs
    Dry Weight 4696 lbs
    Cargo Weight 2504 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 30 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Murphy Bed Rear Bath

  • Hideout 232LHS

    Hideout 232LHS Floorplan Image

    Keystone RV Hideout travel trailer 232LHS highlights: Single Slide U-Shaped ... more about Hideout 232LHS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 4
    Slides 1
    Length 28 ft 1 in
    Ext Width 8 ft
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 610 lbs
    Dry Weight 5589 lbs
    Cargo Weight 2021 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 30 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Outdoor Kitchen U Shaped Dinette Front Bedroom

  • Hideout 242LHS

    Hideout 242LHS Floorplan Image

    Keystone RV Hideout travel trailer 242LHS highlights: Outdoor Kitchen ... more about Hideout 242LHS

    Featured 242LHS

    Specifications

    Sleeps 8
    Slides 1
    Length 28 ft 5 in
    Ext Width 8 ft
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 650 lbs
    Dry Weight 5543 lbs
    Cargo Weight 2107 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen U Shaped Dinette

  • Hideout 252LHS

    Hideout 252LHS Floorplan Image

    Keystone RV Hideout travel trailer 252LHS highlights: Single Slide Dual Entry ... more about Hideout 252LHS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 3
    Slides 1
    Length 28 ft 8 in
    Ext Width 8 ft
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 700 lbs
    Dry Weight 5732 lbs
    Cargo Weight 1968 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 39 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Rear Living Area Two Entry/Exit Doors Front Bedroom

  • Hideout 258LHS

    Hideout 258LHS Floorplan Image

    Keystone RV Hideout travel trailer 258LHS highlights: Outdoor Kitchen Dual Entry ... more about Hideout 258LHS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 5
    Slides 1
    Length 29 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 760 lbs
    Dry Weight 6123 lbs
    Cargo Weight 1637 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 69 gals
    Black Water Capacity 39 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Outdoor Kitchen Two Entry/Exit Doors Rear Kitchen

  • Hideout 262LHS

    Hideout 262LHS Floorplan Image

    Keystone RV Hideout travel trailer 262LHS highlights: Double-Size Bunks ... more about Hideout 262LHS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Length 29 ft 3 in
    Ext Width 8 ft
    Ext Height 10 ft 3 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 545 lbs
    Dry Weight 4958 lbs
    Cargo Weight 2587 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 30 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Front Bedroom Rear Bath

  • Hideout 26RLS

    Hideout 26RLS Floorplan Image

    Keystone Hideout travel trailer 26RLS highlights: Dual Entry Single Slide ... more about Hideout 26RLS

    Featured 26RLS

    Specifications

    Sleeps 6
    Slides 1
    Length 31 ft
    Ext Width 8 ft
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 825 lbs
    Dry Weight 6521 lbs
    Cargo Weight 1304 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 39 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    TV Info LR LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Rear Living Area U Shaped Dinette Two Entry/Exit Doors

  • Hideout 272LHS

    Hideout 272LHS Floorplan Image

    Keystone RV Hideout travel trailer 272LHS highlights: Double-Size Bunks Dual ... more about Hideout 272LHS

    Featured 272LHS

    Specifications

    Sleeps 9
    Slides 1
    Length 30 ft 8 in
    Ext Width 8 ft
    Ext Height 11 ft 1 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 780 lbs
    Dry Weight 6013 lbs
    Cargo Weight 1767 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 30 gals
    Black Water Capacity 30 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Two Entry/Exit Doors Front Bedroom

  • Hideout 274LHS

    Hideout 274LHS Floorplan Image

    Keystone Hideout travel trailer 274LHS highlights: Double-Size Bunks Private ... more about Hideout 274LHS

    Featured 274LHS

    Specifications

    Sleeps 9
    Slides 1
    Length 31 ft 6 in
    Ext Width 8 ft
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 775 lbs
    Dry Weight 6175 lbs
    Cargo Weight 1595 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 30 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Front Bedroom

  • Hideout 27DBS

    Hideout 27DBS Floorplan Image

    Keystone RV Hideout travel trailer 27DBS highlights: Outdoor Kitchen Double-Size ... more about Hideout 27DBS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 10
    Slides 1
    Length 31 ft 6 in
    Ext Width 8 ft
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 790 lbs
    Dry Weight 6459 lbs
    Cargo Weight 1331 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 30 gals
    Tire Size 14
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    TV Info LR LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen U Shaped Dinette

  • Hideout 28BHS

    Hideout 28BHS Floorplan Image

    Keystone RV Hideout travel trailer 28BHS highlights: Double-Size Bunks Dual ... more about Hideout 28BHS

    Featured 28BHS

    Specifications

    Sleeps 10
    Slides 1
    Length 32 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 865 lbs
    Dry Weight 6827 lbs
    Cargo Weight 2838 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 69 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    TV Info LR 50" LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen U Shaped Dinette

  • Hideout 28RBS

    Hideout 28RBS Floorplan Image

    Keystone RV Hideout travel trailer 28RBS highlights: Large Bathroom Outdoor ... more about Hideout 28RBS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 6
    Slides 1
    Length 32 ft 4 in
    Ext Width 8 ft
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 915 lbs
    Dry Weight 6686 lbs
    Cargo Weight 3029 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info LR 50" LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Outdoor Kitchen U Shaped Dinette Front Bedroom

  • Hideout 28RKS

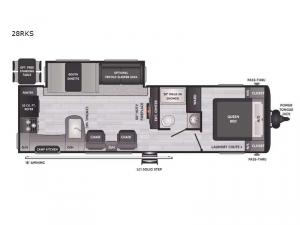

    Hideout 28RKS Floorplan Image

    Keystone RV Hideout travel trailer 28RKS highlights: U-Shaped Dinette Dual ... more about Hideout 28RKS

    Featured 28RKS

    Specifications

    Sleeps 6
    Slides 1
    Length 32 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 860 lbs
    Dry Weight 6969 lbs
    Cargo Weight 2691 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info LR LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Outdoor Kitchen U Shaped Dinette Rear Kitchen

  • Hideout 29BKS

    Hideout 29BKS Floorplan Image

    Keystone RV Hideout travel trailer 29BKS highlights: Private Bunkhouse Outdoor ... more about Hideout 29BKS

    Featured 29BKS

    View All 29BKS In Stock »

    Specifications

    Sleeps 10
    Slides 1
    Length 33 ft 4 in
    Ext Width 8 ft
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 795 lbs
    Dry Weight 6905 lbs
    Cargo Weight 2690 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    TV Info LR LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen U Shaped Dinette

  • Hideout 29DFS

    Hideout 29DFS Floorplan Image

    Keystone Hideout travel trailer 29DFS highlights: Double-Size Bunks Exterior ... more about Hideout 29DFS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 1
    Length 33 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 920 lbs
    Dry Weight 7200 lbs
    Cargo Weight 2480 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 30 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen U Shaped Dinette

  • Hideout 30RLDS

    Hideout 30RLDS Floorplan Image

    Keystone RV Hideout travel trailer 30RLDS highlights: Opposing Slides Kitchen ... more about Hideout 30RLDS

    Featured 30RLDS

    Specifications

    Sleeps 5
    Slides 2
    Length 34 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 1055 lbs
    Dry Weight 7806 lbs
    Cargo Weight 2049 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    TV Info LR LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Rear Living Area Kitchen Island Front Bedroom

  • Hideout 318LHS

    Hideout 318LHS Floorplan Image

    Keystone Hideout travel trailer 318LHS highlights: Private Bunkhouse Outdoor ... more about Hideout 318LHS

    Featured 318LHS

    Specifications

    Sleeps 9
    Slides 2
    Length 35 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 900 lbs
    Dry Weight 7620 lbs
    Cargo Weight 2080 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 69 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Number Of Bunks 4
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Two Entry/Exit Doors

  • Hideout 31FBDS

    Hideout 31FBDS Floorplan Image

    Keystone RV Hideout travel trailer 31FBDS highlights: Dual Entry Private ... more about Hideout 31FBDS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 2
    Length 35 ft
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 895 lbs
    Dry Weight 7945 lbs
    Cargo Weight 1750 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 78 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    TV Info LR LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen U Shaped Dinette

  • Hideout 31RBDS

    Hideout 31RBDS Floorplan Image

    Keystone RV Hideout travel trailer 31RBDS highlights: Private Bunkhouse Dual ... more about Hideout 31RBDS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 2
    Length 0 ft
    Ext Width 8 ft
    Ext Height 0 ft
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Furnace BTU 30000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info LR LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Standard

    Similar Floorplans

    Bunkhouse Outdoor Kitchen U Shaped Dinette

  • Hideout 32BHTS

    Hideout 32BHTS Floorplan Image

    Keystone RV Hideout travel trailer 32BHTS highlights: Private Bunkhouse Outdoor ... more about Hideout 32BHTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 3
    Length 37 ft 8 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 1040 lbs
    Dry Weight 8634 lbs
    Cargo Weight 2566 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 60 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    TV Info LR LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Kitchen Island

  • Hideout 32FBTS

    Hideout 32FBTS Floorplan Image

    Keystone Hideout travel trailer 32FBTS highlights: 50" LED HDTV Four Bunks ... more about Hideout 32FBTS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 3
    Length 36 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 1150 lbs
    Dry Weight 8745 lbs
    Cargo Weight 2755 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Number Of Bunks 4
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info LR 50" LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Kitchen Island

  • Hideout 32RDDS

    Hideout 32RDDS Floorplan Image

    Keystone Hideout travel trailer 32RDDS highlights: 50" LED HDTV Opposing Slides ... more about Hideout 32RDDS

    Featured 32RDDS

    Specifications

    Sleeps 7
    Slides 2
    Length 36 ft 8 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 970 lbs
    Dry Weight 7880 lbs
    Cargo Weight 2000 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 39 gals
    Black Water Capacity 39 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info LR 50" LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Rear Entertainment Front Bedroom

  • Hideout 338LHS

    Hideout 338LHS Floorplan Image

    Keystone Hideout travel trailer 338LHS highlights: Outdoor Kitchen Two Slides ... more about Hideout 338LHS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 8
    Slides 2
    Length 37 ft 11 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 935 lbs
    Dry Weight 7985 lbs
    Cargo Weight 1715 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 69 gals
    Black Water Capacity 78 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Number Of Bunks 3
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Bunkhouse Outdoor Kitchen Bath and a Half

  • Hideout 33BHDS

    Hideout 33BHDS Floorplan Image

    Keystone Hideout travel trailer 33BHDS highlights: Bunkhouse Suite Full and Half ... more about Hideout 33BHDS

    Have a question about this floorplan? Contact Us

    Specifications

    Sleeps 9
    Slides 2
    Length 37 ft 9 in
    Ext Width 8 ft
    Ext Height 11 ft 2 in
    Int Height 6 ft 9 in
    Interior Color Cedar, Timber
    Hitch Weight 1115 lbs
    Dry Weight 8310 lbs
    Cargo Weight 1590 lbs
    Fresh Water Capacity 43 gals
    Grey Water Capacity 69 gals
    Black Water Capacity 78 gals
    Tire Size 15
    Furnace BTU 30000 btu
    Number Of Bunks 2
    Available Beds Queen
    Refrigerator Size 6 cu ft
    Cooktop Burners 3
    Number of Awnings 1
    LP Tank Capacity 40 lbs.
    AC BTU 13500 btu
    Cargo Deck Size 0 ft
    TV Info LR 50" LED HDTV
    Awning Info Electric with LED Lights
    Axle Count 2
    Shower Type Radius

    Similar Floorplans

    Outdoor Kitchen Kitchen Island Bath and a Half

Hideout Features:

Standard Features (2019)

Luxury TT Exterior Features (East)
  • Diamond Plate
  • Black Tank Flush
  • E-Coated Wheels
  • Exterior TV Hookup/Cable and Bracket
  • Powder-Coated I-Beam Frame
  • Full-Length Outriggers
  • Exterior Speakers
  • TV Antenna with Booster
  • Full Walk-On Roof
  • Oversized Pass-Thru Storage
  • Tru-Fit Five Point Slide Out Construction
  • Hurricane Straps Reinforced Structure
  • Radial Tires
  • 96" Exterior Width
  • Lighted Adjustable Power Awning
  • Outside 110 Receptacle
  • XL Entry Assist Handle
  • Cold Mountain Package
  • Easy Lube Axles
  • Dual Battery Rack
  • Black Radius Window Frames
  • Cable Hook Up
  • Radius Entry Doors with Integrated Struts
  • Rain Gutters with Down Spouts
  • Roto-Cast Seamless Holding Tanks
  • Four Heavy Duty Stabilizer Jacks
  • Cambered Chassis
Luxury TT Interior Features (East)
  • Pleated Shades in Living Area
  • HD LED TV
  • Bluetooth DVD/CD/MP3 Stereo
  • Microwave
  • 6 Cubic Foot Refrigerator
  • Ball Bearing Drawer Guides
  • 13,500 BTU Air Conditioner
  • Flex Pex Tubing with 10-Year Warranty
  • Tub Surround
  • RG6 Cable and Satellite Wiring
  • Loomed Color Coded Wiring
  • Reversible Dinette Cushions
  • Full-Strutted Storage under Master Bed
  • Interior Surround Sound Speakers
  • Hidden Laundry Chute
  • Monitor Panel
  • Residential Refrigerator (38BHDS, 38FDDS, 38FKDS, 38FQDS)
  • 12 Volt 55 AMP Converter
  • Built-In 30,000 BTU Furnace
  • 81” Interior Height
  • Foot Flush Toilet
  • 4 1/2" Crowned Roof
  • Range with Hi-Output Burner
  • High-Rise Kitchen Faucet
LHS TT Exterior Features
  • Diamond Plate
  • Outside 110 Receptacle
  • Exterior TV Hookup/Cable and Bracket
  • Easy Lube Axles
  • Dual Battery Rack
  • Black Radius Window Frames
  • Cable Hook Up
  • Oversized Pass-Thru Storage
  • Tru-Fit Five Point Slide Out Construction
  • Hurricane Straps Reinforced Structure
  • Radial Tires
  • 96" Exterior Width
  • Lighted Adjustable Power Awning
  • E-Coated Wheels
  • Powder Coated I-Beam Frame
  • Full-Length Outriggers
  • Exterior Speakers
  • TV Antenna with Booster
  • Radius Entry Doors with Integrated Struts
  • Rain Gutters with Down Spouts
  • Roto-Cast Seamless Holding Tanks
  • Four Heavy Duty Stabilizer Jacks
  • Cambered Chassis
LHS TT Interior Features
  • Interior Surround Sound Speakers
  • Hidden Laundry Chute
  • Monitor Panel
  • Ball Bearing Drawer Guides
  • 13,500 BTU Air Conditioner
  • Flex Pex Tubing with 10-Year Warranty
  • Tub Surround
  • RG6 Cable and Satellite Wiring
  • Loomed Color Coded Wiring
  • Reversible Dinette Cushions
  • Bluetooth DVD/CD/MP3 Stereo
  • Microwave
  • 6 Cubic Foot Refrigerator
  • 12 Volt 55 AMP Converter
  • Built-In 30,000 BTU Furnace
  • 81" Interior Height
  • Foot Flush Toilet
  • 4 1/2" Crowned Roof
  • Range with Hi-Output Burner
  • High-Rise Kitchen Faucet
Luxury TT Exterior Features (West)
  • Diamond Plate
  • Black Tank Flush
  • E-Coated Wheels
  • Exterior TV Hookup/Cable and Bracket
  • Easy Lube Axles
  • Dual Battery Rack
  • Exterior Speakers
  • TV Antenna with Booster
  • Seamless One-Piece Full Walk-On Roof
  • Oversized Pass-Thru Storage
  • Rain Gutters with Down Spouts
  • Prepped for Solar Panels
  • Roto-Cast Seamless Holding Tanks
  • Four Heavy Duty Stabilizer Jacks
  • Cambered Chassis
  • Exterior Shower
  • Lighted Adjustable Power Awning
  • Outside 110 Receptacle
  • XL Entry Assist Handle
  • Cold Mountain Package (Slide Models Only)
  • Full-Length Outriggers
  • Two 30 LB LP Bottles
  • Black Radius Window Frames
  • Cable Hook Up
  • Radius Entry Doors with Integrated Struts
  • Hose Storage in the Bumper
  • Tru-Fit Five Point Slide Room Construction
  • Prepped for Backup Camera
  • Hurricane Straps Reinforced Structure
  • Radial Tires
  • 96" Exterior Width
Luxury TT Interior Features (West)
  • Pleated Shades in Living Area
  • HD LED TV (Most Models)
  • Bluetooth DVD/CD/MP3 Stereo
  • Monitor Panel
  • Ball Bearing Drawer Guides
  • 13,500 BTU Air Conditioner
  • 20,000 BTU Furnace (19FLB, 21FQ)
  • Flex Pex Tubing with 10-Year Warranty
  • Tub Surround
  • RG6 Cable and Satellite Wiring
  • Range with Hi-Output Burner
  • High-Rise Kitchen Faucet
  • Full-Strutted Storage Under Master Bed
  • Interior Surround Sound Speakers
  • Microwave
  • 6 Cubic Foot Refrigerator
  • 12 Volt 55 AMP Converter
  • Built-In 30,000 BTU Furnace (N/A 19FLB, 21FQ)
  • Gas/Electric DSI Water Heater
  • 78" Interior Height
  • Foot Flush Toilet
  • Loomed Wiring
  • Reversible Dinette Cushions
Luxury FW Exterior Features
  • Hideout Patented Hitch Vision
  • Gel-Coated Maxturn Fiberglass Front Cap
  • Outside 100 Receptacle
  • Easy Lube Axles
  • Black Radius Window Frames
  • Oversized Pass-Thru Storage
  • Hurricane Straps Reinforced Structure
  • Electric Adjustable Front Landing Gear
  • Black Tank Flush
  • Exterior TV Hookup/Cable and Bracket
  • Full-Length Outriggers
  • Radius Entry Doors with Integrated Struts
  • Tru-Fit Five Point Slide Out Construction
  • Exterior Shower

Luxury FW Interior Features

  • Tri-Fold Sleeper Sofa
  • Full-Strutted Storage under Master Bed
  • Microwave
  • 8 Cubic Foot Refrigerator
  • 12 Volt 55 AMP Converter
  • Built-In 30,000 BTU Furnace
  • Flex Pex Tubing with 10-Year Warranty
  • RG6 Cable and Satellite Wiring
  • Pleated Shades in Living Area
  • HD LED TV
  • Monitor Panel
  • Ball Bearing Drawer Guides
  • 15,000 BTU Air Conditioner
  • Gas/Electric DSI Water Heater
  • Tub Surround
  • High-Rise Kitchen Faucet
Safety
  • Safety Chains
  • Electric Brakes
  • LP Gas Detector
  • Fire Extinguisher
  • Tinted Safety Glass
  • Break Away Switch
  • Carbon Monoxide Detector
  • Smoke Detector
  • GFI Electrical Outlets
Luxury TT Options (East)
  • Exterior Shower
  • Rear Ladder (Most Models)
  • Free-Standing Dinette (Select Models)
  • Spare Tire and Carrier
  • Tri-Fold Sleeper Sofa
  • Gas/Electric DSI Water Heater
LHS TT Options
  • Exterior Shower
  • HD LED TV
  • Spare Tire and Carrier
  • 15,000 BTU Air Conditioner
Luxury TT Options (West)
  • Spare Tire and Carrier
  • LCD TV
Luxury FW Options
  • Spare Tire and Carrier
  • Rear Ladder (Most Models)
  • Free-Standing Dinette (Select Models)
See us for a complete list of features and available options!
All standard features and specifications are subjects to change.

Manu-Facts:



At Keystone we do things differently, and have since we first opened our doors in 1996. This different way means focusing on you, our customer, and building RVs that are much more than great floor plans and prices. It starts with innovative products that are built tough, and doesn’t stop there. It’s our commitment to provide a better ownership experience. We understand that when you put your hard earned money down, you expect your RV to deliver as promised. That’s why “Building Adventures for the Long Haul” is more than just a slogan here at Keystone; it is our number one mission each and every day. It’s the reason today we are honored to say we have nearly one million Keystone owners out on the open road who we consider family.

TEXT US TODAY!
